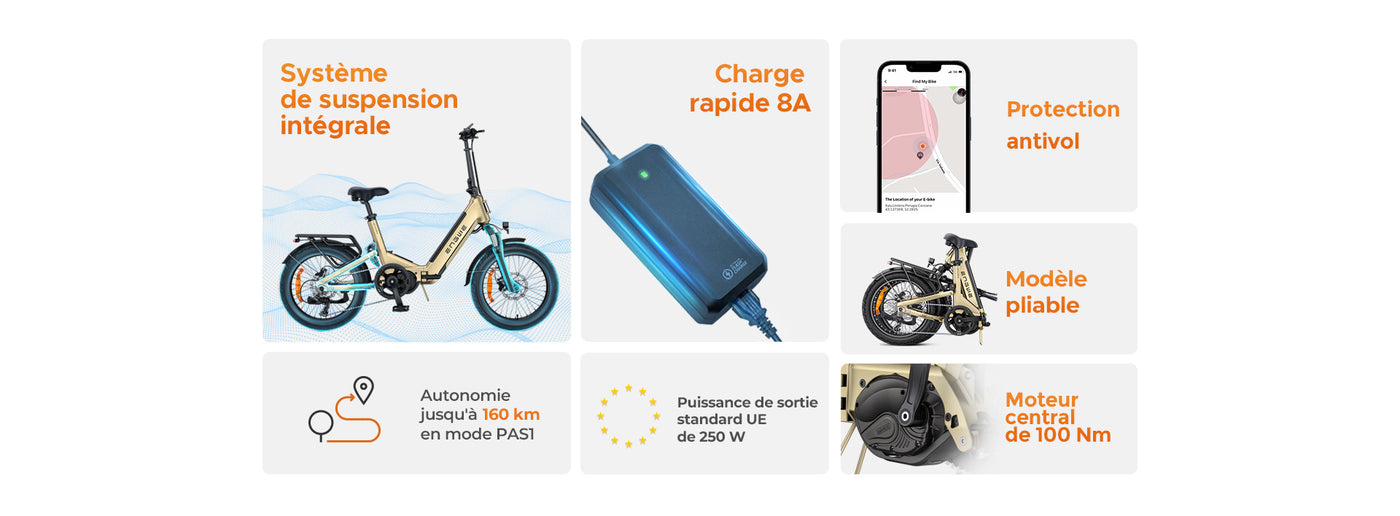

Sistema a Sospensioni
Complete

8A
Ricarica rapida

720 Wh
Batteria rimovibile

100 Nm
di coppia

160 km
Autonomia massima di

TÜV
Certificato
L20 3.0 Pro
250W 100Nm Mid-drive Motor Full Suspension Compact E-bike

Sistema a Sospensioni
Complete

8A
Ricarica rapida

720 Wh
Batteria rimovibile

100 Nm
di coppia

160 km
Autonomia massima di

TÜV
Certificato
Specs
General Info | |
Model | L20 3.0 Pro |
Max Load Capacity | 150kg (330 lbs) |
Ride Height | 5'1" - 6'3" (155cm - 190cm) |
Certification | CE (EN15194) |
Pedal Assist | 5 Levels |
Fold | Yes |
Lab Tested Range | 160 km(Fully Charged) |
Real-World Range | 140 km(PAS 1) 110 km(PAS 3) 96 km(PAS 5) |
Waterproof Ratings | IPX7(Waterproof Wiring) IPX6(Display & Lights) IPX5(Motor & Controller) IPX4(Battery Box) |
Terrain | Tarmac Roads & Bicycle Routes Gravel-Paved Paths Sandy Beaches & Grass Country Roads & Paved Trails |
Bike Weight | 32.8 kg(72.3 lbs) |
Gross Weight | Approx. 42kg(92.6 lbs) |
Frameset | |
Frame Material | 6061 Aluminum Alloy, Internal Battery, Step-Through Design |
Frame Style | Compact, Full Suspension |
Fork | Hydraulic, Adjustable Lockout, One-Piece Die-Cast Aluminum |
Rear Suspension | 30mm Travel |
Wheel Set | |
Tires | 20" × 3.0" Urban Hybrid Tires |
Puncture Protection | 3mm Anti-Puncture Layer |
Wheels | 20-inch, 12-gauge Spokes, 36-hole, Double-Wall Aluminum, Black |
E-Bike System | |
Motor | Mivice X700 Mid-Drive, 48V |
Max Torque | 100Nm |
IOT | ENGWE IOT Module with GPS, 4G & Bluetooth |
Assist System | Torque Sensor |
Battery | 48V 15Ah (720Wh), Samsung 21700 Cells with BMS |
Display | 3.5" LCD Color Display, ENGWE-Designed, Mid-Position |
ENGWE App | App Control Available |
Charger | 54.6V 8A Output |
Front Light | 30 Lux with Integrated E-Horn |
Rear Light | Automatically brightens When Braking or Shaking |
Brakes | |
Brake Type | Hydraulic, Dual-Piston |
Disc Rotor | 180mm Front & Rear |
Drivetrain | |
Chain | KMC E8S Anti-Rust, 112 Links |
Chainring | 48T |
Crank | 170mm |
Rear Derailleur | Shimano Tourney RD-TY300, 7-Speed |
Shifter | Shimano SL-M315-7R |
Cassette | 7-Speed, 14T-28T |
Pedals | Boron Steel, Non-Foldable |
Cockpit | |
Saddle | ENGWE Soft Saddle |
Seat Post | 10-Level Adjustable |
Handlebars | 680mm Width |
Stem | Foldable |
Seat Clamp | Quick-Release |
Size
Ride Height | 5'1" - 6'3" (155cm - 190cm) |
Max Load Capacity | 150kg (330 lbs) |
Package Dimensions | 144*27*64 cm |

A-Handlebar Height | 110.2cm |
B-Total Length | 172.0cm |
C-Reach | 51.2cm |
D-Standover Height | 38.0cm |
E-WheelBase | 116.5cm |
F-Minum saddle Height | 82.0cm |
G-Maximum saddle Height | 102.0cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
Folded Size |
102*53*78 cm |

A-Height | 78 cm |
B-Length | 102 cm |
C-Width | 53 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
What's in the Box?
L20 3.0 Pro E-Bike | *1 |
Battery | 48V 15Ah Samsung Lithium-Ion*1 |
Charger | 54.6V 8A *1 |
Pedals | *2 |
Front & Rear Fenders | *1 |
Rear Rack | *1 |
Bike Kickstand | *1 |
Assembly Tools | *1 |
User Manual | *1 |
Please note: The product you receive is based on the option you selected to order.
FAQ
1. Order processing times:
In Stock: Upon receiving your order confirmation email, we will begin processing your order within 2 business days, and your shipment will be dispatched on the third business day.
Pre-Sale: For pre-order items, please check the product page for specific shipping timelines.
Out of Stock: For out-of-stock items, please refer to the product page for detailed shipping information.
Your order will be shipped from the warehouse closest to your address, with an estimated delivery time of 2 to 10 days.
For more details on delivery locations and costs, please refer to our Shipping Policy.
*Please note: Delivery may not be available to remote areas or islands. For special requests or urgent delivery needs, please contact our customer service team, and we will do our best to accommodate you.
2. ENGWE L20 3.0 Pro User Manual
Please click here to view L20 3.0 Pro User Manual.

L20 3.0 Pro
la prima e-bike compatta con sospensione complete


Compatto con sospensione completa
Prova la prima e-bike compatta con un design a sospensioni complete, perfetta per le strade cittadine e non solo.

Una guida urbana più fluida
Progettata per assorbire fino al 90% delle vibrazioni. Goditi l'assorbimento degli urti come su una mountain bike anche sulle strade cittadine.

Ricarica ultraveloce da 8A
Ricarica completa in 2 ore con celle Samsung di alta qualità, mantenendo l’80% della capacità dopo 800 cicli—pari a 80.000 km! Il BMS avanzato ottimizza la ricarica e monitora in tempo reale per garantire sicurezza e durata.
Volte Più Veloce
Others

Antifurto intelligente
Integrata con l'avanzato modulo IoT di Engwe, fornisce avvisi in tempo reale e tracciamento GPS per proteggere la tua bici.

Al sicuro sempre e ovunque
Rimani in controllo grazie agli avvisi di movimento, al posizionamento GPS e al monitoraggio su app, per assicurarti che la tua e-bike sia sempre a portata di mano.
Rilevatore di movimento
Tracciamento GPS
Monitoraggio tramite APP

Motore a trasmissione centrale da 100 Nm
Il motore mid-drive ad alte prestazioni da 250 W eroga una coppia di 100 Nm per un'accelerazione potente e una pedalata in salita senza sforzo.

160 km di autonomia in più
L'enorme batteria Samsung da 720Wh garantisce fino a 160 km con una singola carica, eliminando l'ansia dell'autonomia per le avventure più lunghe.
Modalità PAS
Others
Others
Dati del test: La gamma è stata testata in modalità PAS 1 con un peso di 75 kg e una temperatura di 25°.
Test di autonomia reale
Dati di prova: L'autonomia è stata testata in modalità PAS con un peso di 75 kg, una temperatura di 25 °C su una strada piana.
Confronto completo
Sfaccettatura |
![]() |
![]() |
![]() |
---|---|---|---|
Price | |||
Price | | | |
Suspension | |||
Suspension | Full Suspension | / | / |
Charging Hour | |||
Charging Hour | 2H | / | 6.5H |
Torque | |||
Torque | 100Nm | 50Nm | 75Nm |
Motor | |||
Motor | 250W Mid-drive Motor | 250W Mid-drive Motor | 250W Hub Motor |
Battery capacity | |||
Battery capacity | 720Wh | 545Wh | 624Wh |
Range | |||
Range | 160 km | / | 126 km |
IOT | |||
IOT | Motion Detective | / | / |
Tires | |||
Tires | 20" × 3.0" | 20" × 2.4" | 20" × 4.0" |
Transmission | |||
Transmission | Shimano 7 speed | Shimano 8 speed | Shimano 7 speed |
Progettata per prestazioni e comfort

Sella ergonomica

Cambio Shimano a 7 velocità

Freni idraulici

Rear rack

Pneumatici 20×3” Antiforatura

Telaio pieghevole

Manubrio Swallow da 680 mm
