Full Suspension
System

8A
Fast Charging

720Wh
Removable Battery

100Nm
Max torque (Mid-Drive)

160KM
Max Range

TÜV
Certified
L20 3.0 Pro
250W 100Nm Mid-drive Motor Full Suspension Compact E-bike

Full Suspension
System

8A
Fast Charging

720Wh
Removable Battery

100Nm
Max torque (Mid-Drive)

160KM
Max Range

TÜV
Certified
Specs
General Info | |
Model | L20 3.0 Pro |
Max Load Capacity | 150kg (330 lbs) |
Ride Height | 5'1" - 6'3" (155cm - 190cm) |
Certification | CE (EN15194) |
Pedal Assist | 5 Levels |
Fold | Yes |
Lab Tested Range | 160 km(Fully Charged) |
Real-World Range | 140 km(PAS 1) 110 km(PAS 3) 96 km(PAS 5) |
Waterproof Ratings | IPX7(Waterproof Wiring) IPX6(Display & Lights) IPX5(Motor & Controller) IPX4(Battery Box) |
Terrain | Tarmac Roads & Bicycle Routes Gravel-Paved Paths Sandy Beaches & Grass Country Roads & Paved Trails |
Bike Weight | 32.8 kg(72.3 lbs) |
Gross Weight | Approx. 42kg(92.6 lbs) |
Frameset | |
Frame Material | 6061 Aluminum Alloy, Internal Battery, Step-Through Design |
Frame Style | Compact, Full Suspension |
Fork | Hydraulic, Adjustable Lockout, One-Piece Die-Cast Aluminum |
Rear Suspension | 30mm Travel |
Wheel Set | |
Tires | 20" × 3.0" Urban Hybrid Tires |
Puncture Protection | 3mm Anti-Puncture Layer |
Wheels | 20-inch, 12-gauge Spokes, 36-hole, Double-Wall Aluminum, Black |
E-Bike System | |
Motor | Mivice X700 Mid-Drive, 48V |
Max Torque | 100Nm |
IOT | ENGWE IOT Module with GPS, 4G & Bluetooth |
Assist System | Torque Sensor |
Battery | 48V 15Ah (720Wh), Samsung 21700 Cells with BMS |
Display | 3.5" LCD Color Display, ENGWE-Designed, Mid-Position |
ENGWE App | App Control Available |
Charger | 54.6V 8A Output |
Front Light | 30 Lux with Integrated E-Horn |
Rear Light | Automatically brightens When Braking or Shaking |
Brakes | |
Brake Type | Hydraulic, Dual-Piston |
Disc Rotor | 180mm Front & Rear |
Drivetrain | |
Chain | KMC E8S Anti-Rust, 112 Links |
Chainring | 48T |
Crank | 170mm |
Rear Derailleur | Shimano Tourney RD-TY300, 7-Speed |
Shifter | Shimano SL-M315-7R |
Cassette | 7-Speed, 14T-28T |
Pedals | Boron Steel, Non-Foldable |
Cockpit | |
Saddle | ENGWE Soft Saddle |
Seat Post | 10-Level Adjustable |
Handlebars | 680mm Width |
Stem | Foldable |
Seat Clamp | Quick-Release |
Size
Ride Height | 5'1" - 6'3" (155cm - 190cm) |
Max Load Capacity | 150kg (330 lbs) |
Package Dimensions | 144*27*64 cm |

A-Handlebar Height | 110.2cm |
B-Total Length | 172.0cm |
C-Reach | 51.2cm |
D-Standover Height | 38.0cm |
E-WheelBase | 116.5cm |
F-Minum saddle Height | 82.0cm |
G-Maximum saddle Height | 102.0cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
Folded Size |
102*53*78 cm |

A-Height | 78 cm |
B-Length | 102 cm |
C-Width | 53 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
What's in the Box?
L20 3.0 Pro E-Bike | *1 |
Battery | 48V 15Ah Samsung Lithium-Ion*1 |
Charger | 54.6V 8A *1 |
Pedals | *2 |
Front & Rear Fenders | *1 |
Rear Rack | *1 |
Bike Kickstand | *1 |
Assembly Tools | *1 |
User Manual | *1 |
Please note: The product you receive is based on the option you selected to order.
FAQ
1. Order processing times:
In Stock: Upon receiving your order confirmation email, we will begin processing your order within 2 business days, and your shipment will be dispatched on the third business day.
Pre-Sale: For pre-order items, please check the product page for specific shipping timelines.
Out of Stock: For out-of-stock items, please refer to the product page for detailed shipping information.
Your order will be shipped from the warehouse closest to your address, with an estimated delivery time of 2 to 10 days.
For more details on delivery locations and costs, please refer to our Shipping Policy.
*Please note: Delivery may not be available to remote areas or islands. For special requests or urgent delivery needs, please contact our customer service team, and we will do our best to accommodate you.
2. ENGWE L20 3.0 Pro User Manual
Please click here to view L20 3.0 Pro User Manual.

L20 3.0 Pro
The First Compact E-bike With Full Suspension

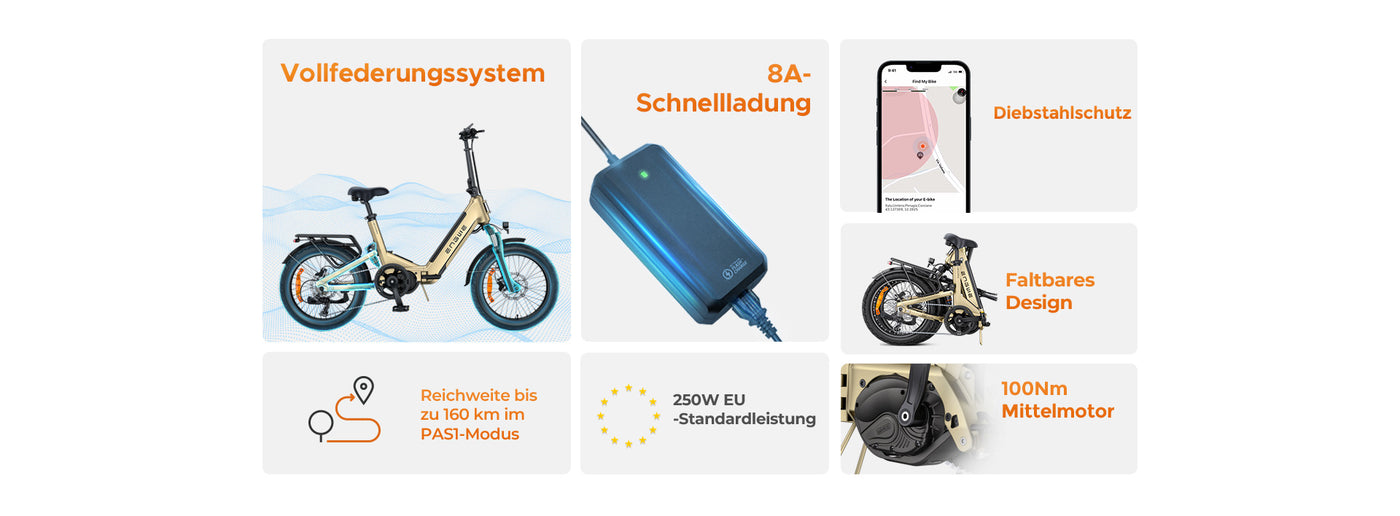

Compact with full suspension
Experience the first compact e-bike with a full-suspension design, perfect for city streets and beyond.

A Smoother Urban Ride
Engineered to absorb up to 90% of vibrations. Enjoy mountain bike-grade shock absorption on city streets

Ultra-Fast 8A Charging
Fully charged in 2 hours with high-quality Samsung cells, retaining 80% capacity after 800 cycles—enough for 80,000 km! The advanced BMS optimizes charging and monitors in real-time for safety and longevity.
Times Faster Charging
Others

Smart Anti-Theft
Integrated with Engwe’s advanced IoT module, providing real-time alerts and GPS tracking to safeguard your ride.

Stay Secure Anytime, Anywhere
Stay in control with motion alerts, GPS positioning, and app-based monitoring, ensuring your e-bike is always within reach.
Motion Detective
GPS Tracking
APP Monitoring

100Nm Mid-Drive Motor
A high-performance 250W mid-drive motor delivers 100Nm of torque for powerful acceleration and effortless hill climbing.

160km Longer Range
A massive 720Wh Samsung battery provides up to 160km on a single charge, eliminating range anxiety for extended adventures.
PAS Mode
Others
Others
Lab test data: The range was tested in the PAS mode 1 by the weight of 75kg with the temperature of 25°.
Real-World Range
Test data: The range was tested in PAS mode by the weight of 75kg with the temperature of 25° on flat road.
Side-By-Side Comparison
Facette |
![]() ENGWE L20 3.0 Pro
|
![]() i: SY S8
|
![]() ENGWE L20 Boost
|
---|---|---|---|
Price | |||
Price | | | |
Suspension | |||
Suspension | Full Suspension | / | / |
Charging Hour | |||
Charging Hour | 2H | / | 6.5H |
Torque | |||
Torque | 100Nm | 50Nm | 75Nm |
Motor | |||
Motor | 250W Mid-drive Motor | 250W Mid-drive Motor | 250W Hub Motor |
Battery capacity | |||
Battery capacity | 720Wh | 545Wh | 624Wh |
Range | |||
Range | 160 km | / | 126 km |
IOT | |||
IOT | Motion Detective | / | / |
Tires | |||
Tires | 20" × 3.0" | 20" × 2.4" | 20" × 4.0" |
Transmission | |||
Transmission | Shimano 7 speed | Shimano 8 speed | Shimano 7 speed |
Engineered for Performance and Comfort

Ergonomic Saddle
Ride longer in comfort with a saddle designed to reduce pressure and enhance support.

Shimano 7-Speed
Seamless shifting for effortless acceleration, uphill climbs, and smooth cruising on any road.

Hydraulic Brakes
Powerful and responsive stopping power for a safer, smoother ride in any weather or terrain.

Rear rack
Sturdy, spacious rear rack let you carry groceries, gear, or essentials with ease, making daily errands effortless.

20"×3.0" Puncture Proof Tyre
Enhanced grip, shock absorption, and stability for city streets and trails—plus puncture-resistant tires for a worry-free ride.

Foldable Frame
Compact, portable, and travel-friendly—store it anywhere and take it everywhere with ease.

680mm Swallow Handlebar
Designed for agile handling and a relaxed grip, ensuring better control on every journey.
